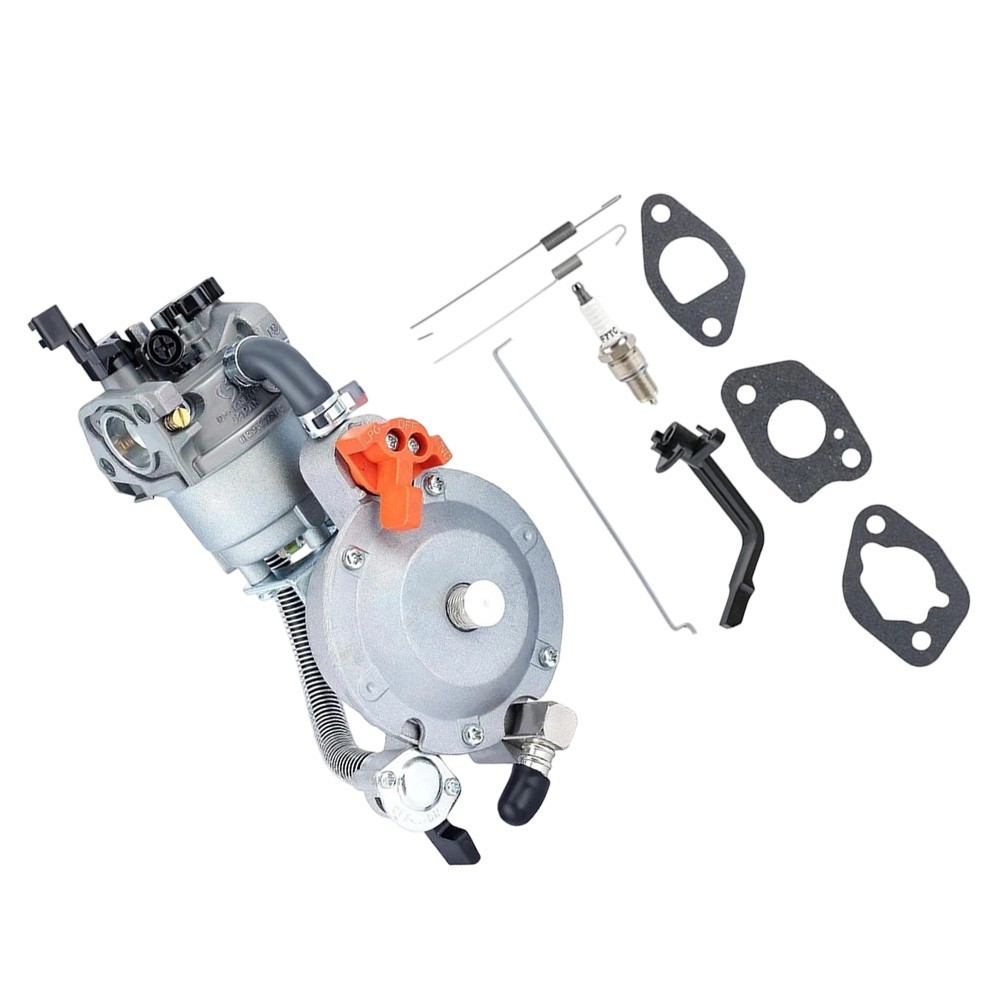

Dual Fuel Carburetor For Gx160 For Gx200 For Lpg Propane Generator

Features:

* Built and tested to stringent quality control standards.

* The generator can operate on liquefied petroleum gas (for LPG), natural gas, or biogas, complete combustion and high thermal efficiency. Cost-effectiveness: Calculated per kilowatt-hour, natural gas is 1/5 the price of , and for LPG is 1/2 the price of .

* Gas generators produce far superior exhaust emissions to fuel-fired generators, with gentler combustion and significantly lower operating noise levels.

* No oil or lubricant dilution, and gas-fired generators operate smoothly, extending their lifespan. When using a gas generator, the gas will not form an oil film in the carburetor when the generator is idle for extended periods, problems such as engine starting difficulties and poor filtration.

Specifications:

Part Name: Dual-Fuel Carburetor

Generator Model: for GX200 170F Portable Generator

Rated Output Power: 2.8 kW

Liquefied Petroleum Gas (for LPG) Pressure Range: 2.8 kPa-3.8 kPa

Natural Gas Pressure Range: 2.0 kPa-2.6 kPa

Pressure Regulator Output Pressure: 0.03-1.56 kPa

Pressure Regulator Closing Pressure: 3.50 kPa

Material: Metal

Color: As shown

Size: Standard

Operating Principle: (as follows)

1. The gas is converted from high-pressure to low-pressure and supplied smoothly.

2. When the generator is started, negative-pressure gas flows through the mixer and enters the pressure regulating valve. The valve's sealing arm swings open, reducing the pressure of the gas and supplying it to the generator, enabling normal operation.

3. When the generator is shut down, the pressure regulating valve closes simultaneously, cutting off the gas line and shutting down the generator.

4. Installing the for LPG/Natural Gas conversion kit will not affect the generator's power.

Package Contents:

1 x Dual-Fuel Carburetor Kit (as shown in the image)

Note：

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
